The AVC System is the heart of the toll system.
Our AVC electronics is state-of-the-art and is designed to operate in extreme weather conditions.

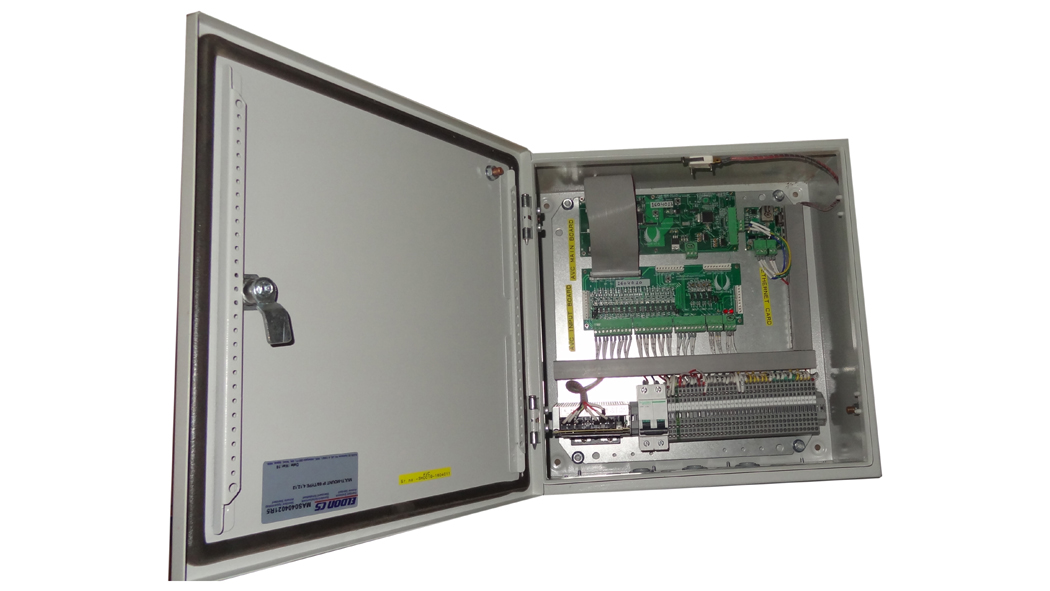

The electronics are mounted in Secure, Lockable, Vandal-proof, IP Rated cabinet.
DataSheet - Automatic Vehicle Classification (AVC) Electronics:
The Key features of the AVC are:
- Equipped with 32 Bit microcontroller thus guarantees very high speed data processing and consumes very low power. In case of power failure, AVC can still operate up to 1 week
- Intrusive (In-road Sensors)
- Minimal Power Consumption – Green Technology
- Infrared (IR) sensors for axle counting, axle distance measurement
- Highly Accurate & Robust
- supports following sensor technologies:
- Classification based on the Weight Data – Another first
- Inbuilt Flash memory thus no chance of data vandalism along with removable memory which can store upto 2 million transactions
- 2 D vehicle profiling Non-Intrusive technology
- Assembled with best in class components with operating temperature endurance of 60oC
- 3 D Laser sensors for vehicle profiling
- Inputs for Multiple loop sensors and multi-Position height detection IR Sensors
- USB, Ethernet, RS232 & Communication Interfaces
- Water and dust ingress protected, incident generation on enclosure opening
- Capability to Classify Multiple Vehicle types (Single/Duals Wheels, 2/3 Wheelers, Tractor with Trolley)
- Auto Diagnostic feature built-in for all electronic cards and AVC Health Status Checks
